ROTOR ALDHU24 CRANKARMS (NO AXLE/ NO SPIDER) - DM
ROTOR ALDHU24 CRANKARMS (NO AXLE/ NO SPIDER) - DM
ROTOR ALDHU24 CRANKARMS (NO AXLE/ NO SPIDER) - DM
Click to enlargeClick to enlarge

ROTOR ALDHU24 CRANKARMS (NO AXLE/ NO SPIDER) - DM

$1,670.00 $835.00

155mm
標籤: Crank, Road
商品描述

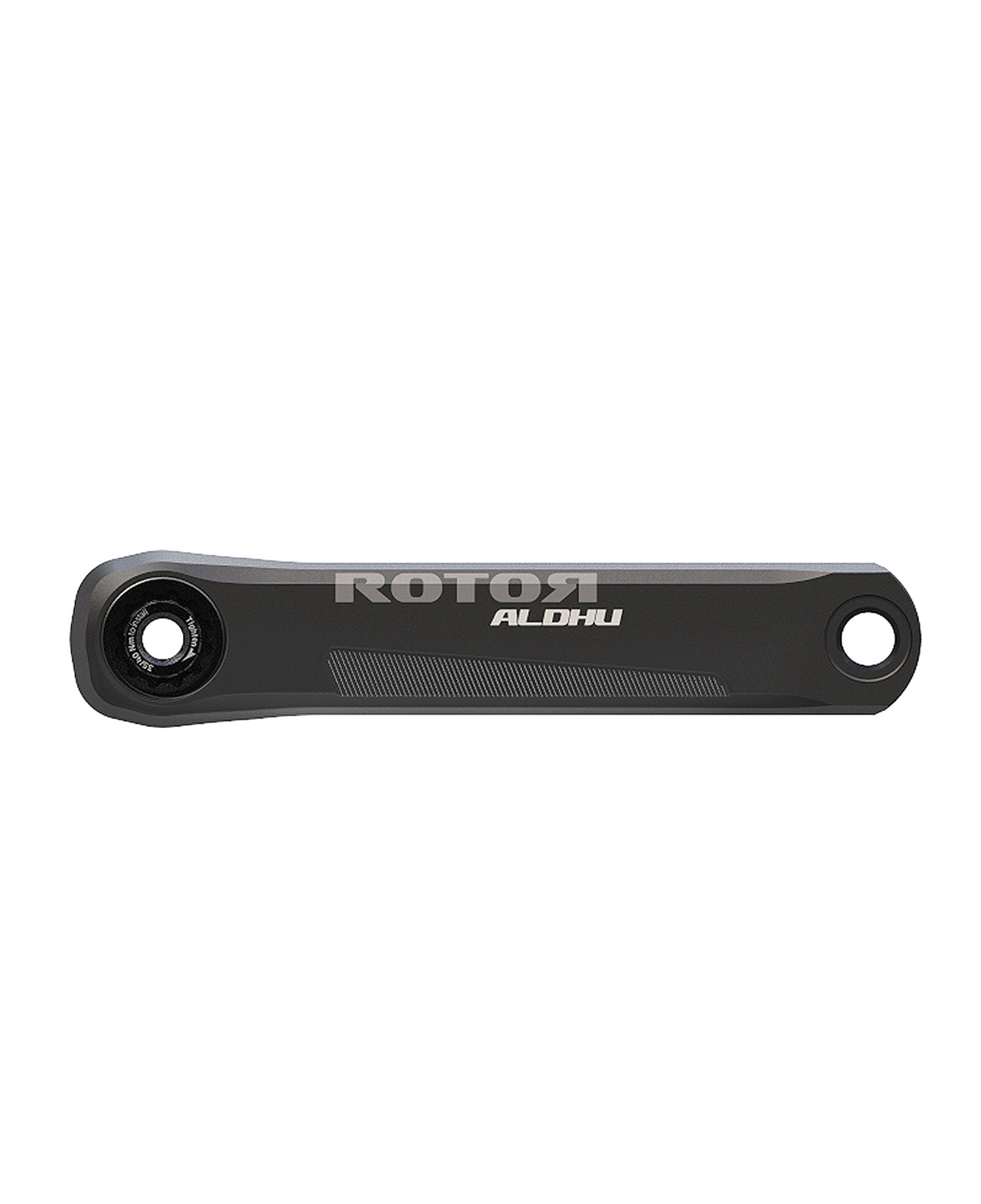

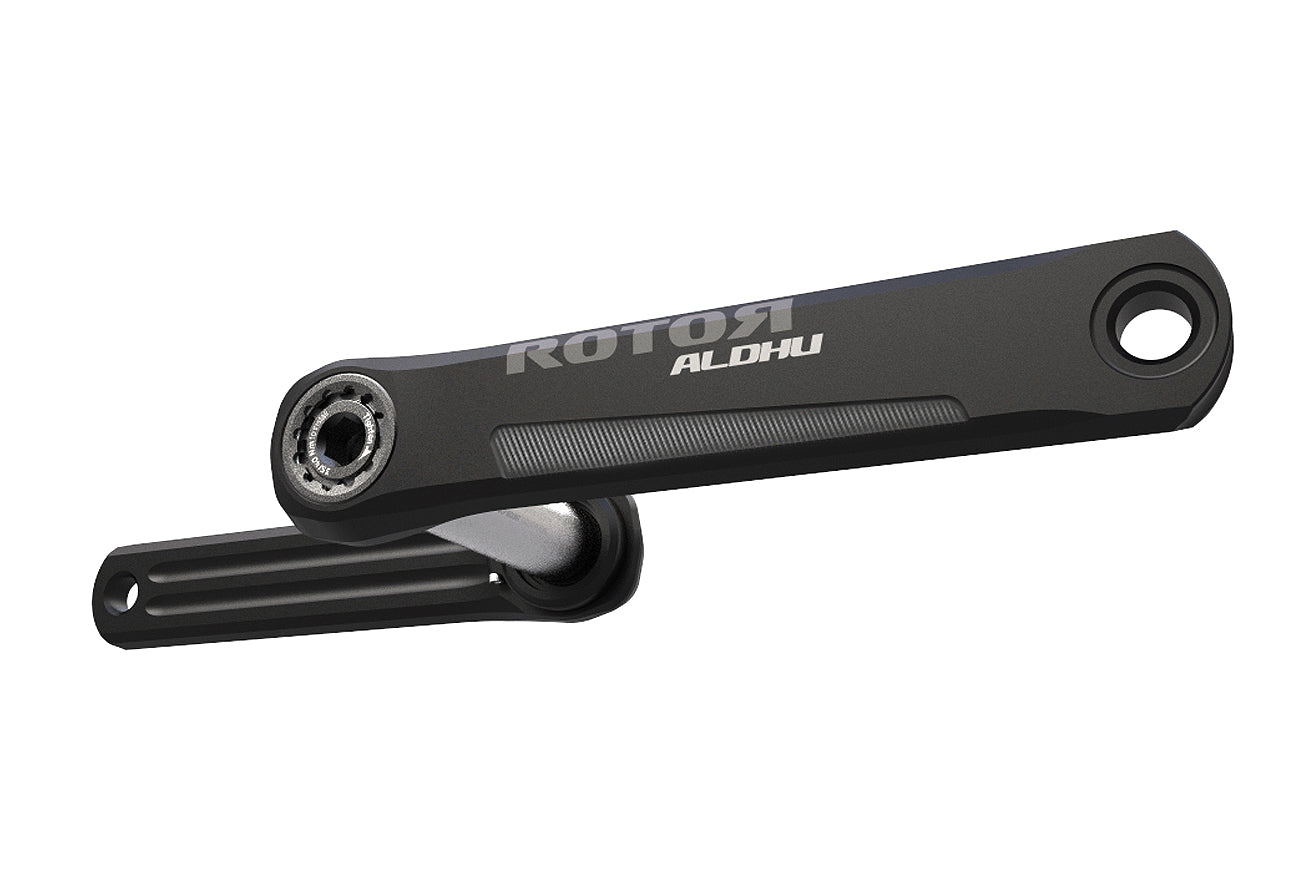

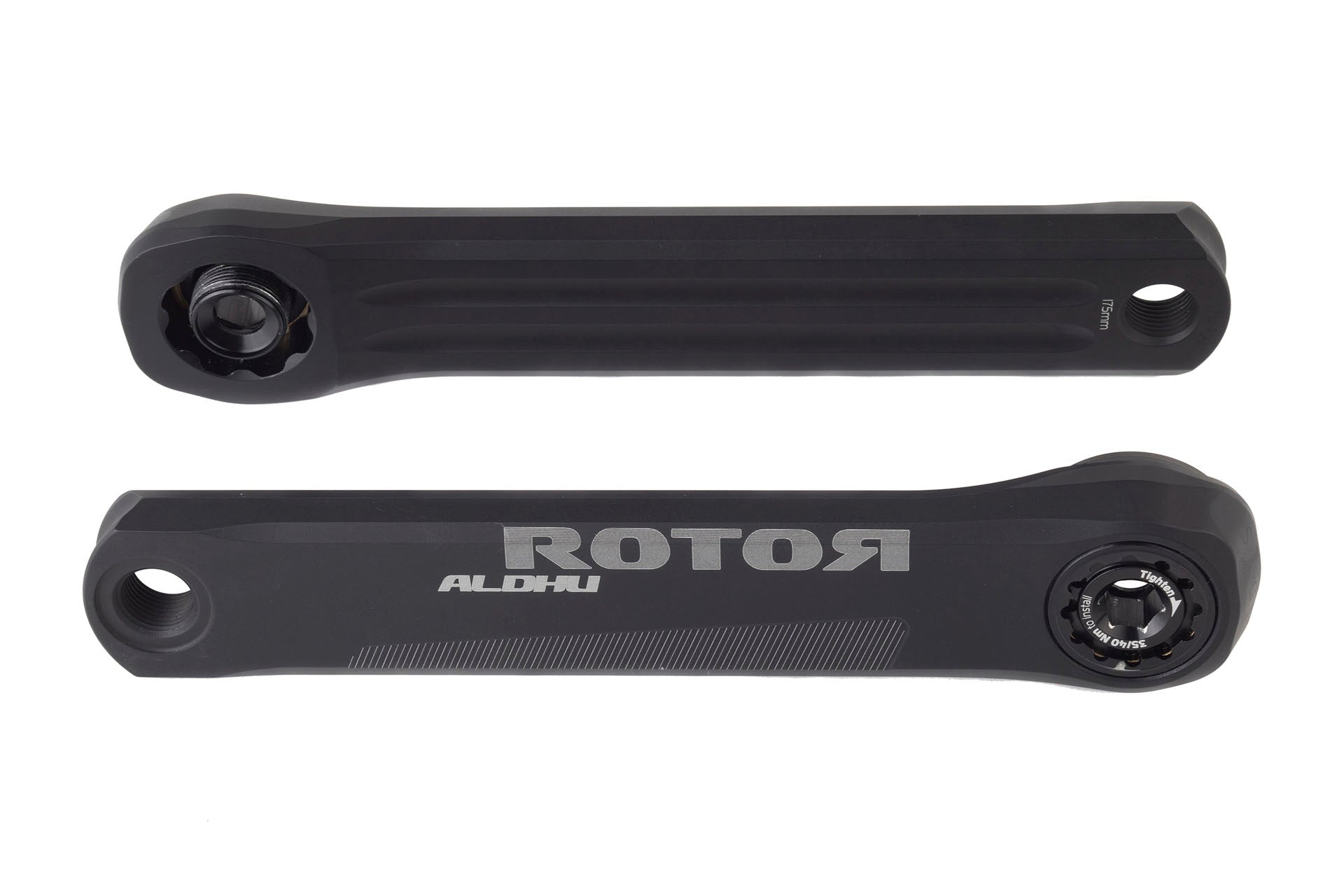

ALDHU® 24 Cranks
頂級系列曲柄

(不含齒片、齒爪、中軸)

Specification

規格

  • 支援曲柄尺寸：
    24軸：155 / 165 / 170 / 172.5 / 175 mm
  • 支援中軸：24軸
  • 支援齒片系統：Direct Mount 直鎖式、BCD110×4*、BCD110×5*
    (*註：需轉接齒爪方可使用)
  • 支援單盤系統
  • 重量：24 軸 175 mm 約 355g (不含中軸、齒片)
  • 材質：7055 aluminum
  • Q-Factor：148 mm
  • Chainline (2X)：43.5 mm (standard中軸)
  • Chainline (1X)：44.5 mm (standard中軸) | 47 mm (offset中軸)
  • 相容BB：BSA30, ITA30, BB30 bearing kit, PRESS FIT 4630, UBB4630, BB386, PRESS FIT 4130

Part Number

原廠料號

ALDHU® 24 Cranks 曲柄

  • 155 mm：C02-108-13010-0
  • 165 mm：C02-108-17010-0
  • 170 mm：C02-108-19010-0
  • 172.5 mm：C02-108-20010-0
  • 175 mm：C02-108-21010-0

ALDHU® Axle 24mm 中軸

  • C02-108-98010-0

ALDHU® 24mm 墊片

  • C00-000-00320
