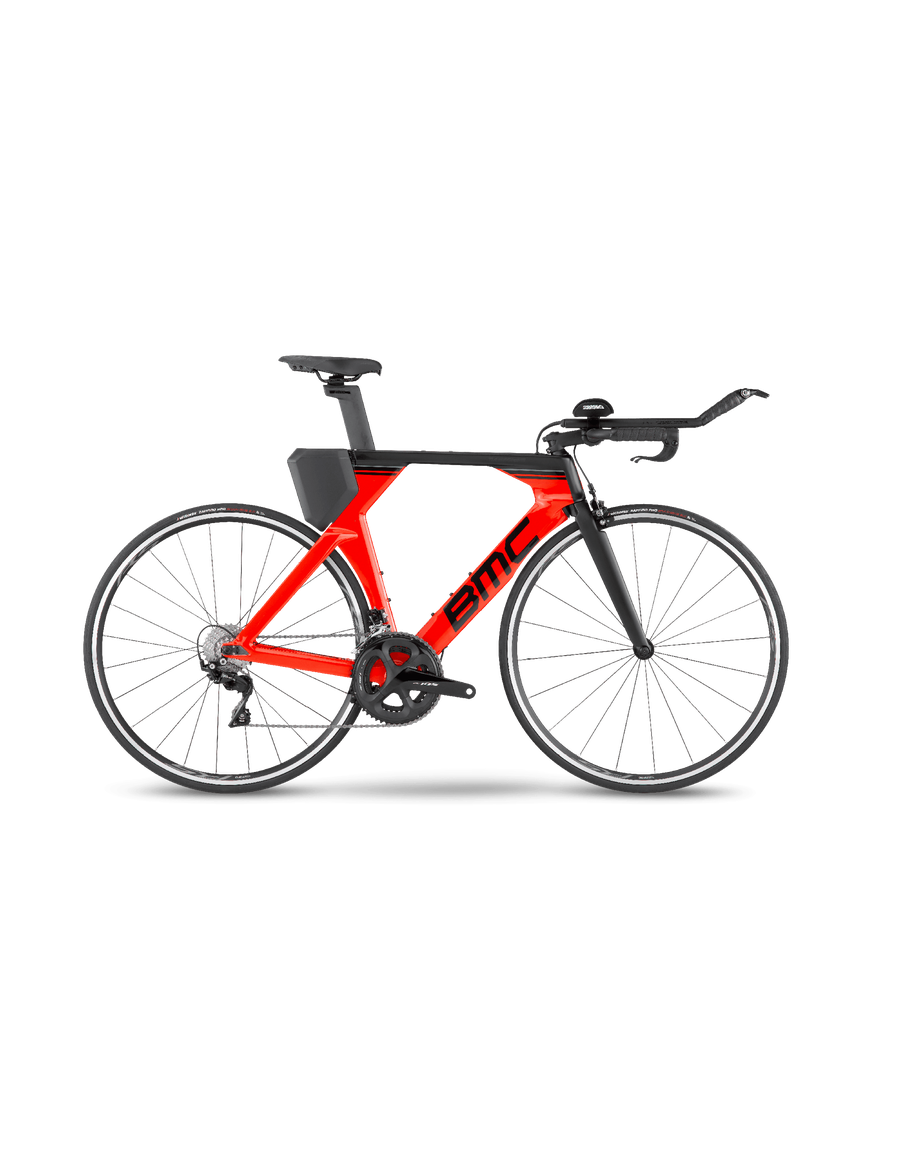

BMC Timemachine ONE 105 Road Bike Red Black
Click to enlargeClick to enlarge

BMC Timemachine ONE 105 Road Bike Red Black

$25,399.00

S
No Assembly
Description
STAY AHEAD OF TIME
Years of studying the needs of multi-sport athletes, combined with repeated aerodynamic refinements, have made the Timemachine the benchmark for triathlon-specific equipment. With superior tube shaping, maximum component integration and an extensive rider positioning system, the Timemachine is tailor-made for triathletes.

Tuned for triathlons
The Timemachine , developed in collaboration with aerodynamics experts provides unmatched speed and stability in crosswinds. The features a traditional aero fork, internal cable routing, rear storage box and integrated fuel options for the high-performance athlete. From Kona to your local time trial, it's built to beat the clock.

Features:
  • Carbon Frame and Fork
  • Shimano 105 Drivetrain
  • Shimano WH-RS100 Wheelset
  • Profile WING 10a Basebar/Sonic Ergo 35A Aerobar

SPECIFICATION

PRODUCT CODE BM30001431
BRAND BMC
GENDER Unisex
AGE Adult
MODEL YEAR 2022
FRAME FRAME -Timemachine Carbon with Vmax Aero Design and P2P Positioning System. • P2P Dual-Mount Aeropost Configuration • Internal Di2 Battery Mount • PF86 Bottom Bracket • Rear Storage Box • Sliding Dropouts
FORK FORK - Timemachine Carbon with Vmax Aero Design, Hinge Design.
SHIFTERS SHIMANO Dura Ace Bar End
DERAILLEUR (FRONT) SHIMANO 105
DERAILLEUR (REAR) SHIMANO 105
BRAKES SHIMANO 105 Direct Mount
CRANKSET SHIMANO 105 53-39T
CASSETTE SHIMANO 105 11-30T
CHAIN SHIMANO 105
HUB FRONT SHIMANO WH-RS100
HUB REAR SHIMANO WH-RS100
RIMS SHIMANO WH-RS100, 24mm
TYRES Vittoria Zaffiro Pro, 25mm
HANDLEBAR Profile WING 10a Basebar / Sonic Ergo 35A Aerobar
STEM BMC RSM01
SADDLE Fizik Mistica Mg
SEATPOST Timemachine Carbon V-Max Aero Seatpost • 62mm Offset Adjustment • P2P Dual-Mount Aeropost Configuration (Triathlon & Time Trial)
PEDAL NA
WHEEL SIZE 700c





SIZE S L M-S M-L
Rider Height CM <170 186-196 172-180 178-188
Wheelbase MM (wb) 964 1038 967 1008
Seat Tube Angle (sa) 71.5 - 80.8 71.5 - 80.8 71.5 - 80.8 71.5 - 80.8
Stack MM 480 556 515 515
Trail MM (trail) 60 60 60 60
Rear Center MM (rc) 393-404 393-404 393-404 393-404
Reach MM (reach) 393 442 377 418
Head Tube MM (ht) 97 153 111 111
Head Angle (ha) 71.5 71.5 71.5 71.5
BB Drop MM (drop) 58 68 68 68
Stem Length MM 90 110 90 100
Saddle Height Range 630 - 780 700 - 880 660 - 850 660 - 850
Seat Tube MM (st) 495 592 550 550
Stem Angle ±8 ±8 ±8 ±8
Post Offset MM 27/ 9 / -9 / -27 27/ 9 / -9 / -27 27/ 9 / -9 / -27 27/ 9 / -9 / -27
Crank Length MM 165 172.5 170 170
Fork Rake MM (fr) 45 45 45 45
Front Center MM (fc) 580 649 578 619
Fork Length MM (fl) 374 374 374 374
Bar Width MM 400 420 420 420
Bar Reach MM 160 160 160 160
Standover Height mm 755 838 797 797
